Engine Stalling-Fuel pump wire short/Accent 2004

Model: Accent	Year Model:2004	Mileage: 123498 km
Displacement:1300cc	Fuel: Gasoline	T/A all

Subject: Engine Stalling – Fuel pump wire short.

1) Condition:

1. Engine Stalling due to the Short circuit of fuel pump wire.

2) Cause:

1. Damage in fuel pump lead wire

3) Diagnosis:

1. Scan tool check = No trouble Code.
2. Inspect if the Ignition Spark operates or not.
   = Inspect the spark when high tension wire cable is disconnected in engine cranking condition: Normal.
3. Inspect the injector and fuel supplying condition.
   = Inspect the sound of injector operation in engine cranking condition = Normal.
   = Inspect the fuel pump(sound of fuel pump) = No sound.
4. Inspect the circuit fuse of the fuel pump.
   = Inspect the engine compartment relay and fuse box 20 amperes fuse = The fuse is opened.
   = Re-start the engine after replacing the fuse: the fuse is opened again.
5. Inspect the supplying line in the fuel pump.
   = Check for the a short circuit between M36 connector # 5 terminal and body using a Ohm meter = Ohms normal.
   = Calculate the resistance in fuel pump = 0 Ohms (Abnormal)
6. Inspect the fuel pump after removing the fuel pump assembly.

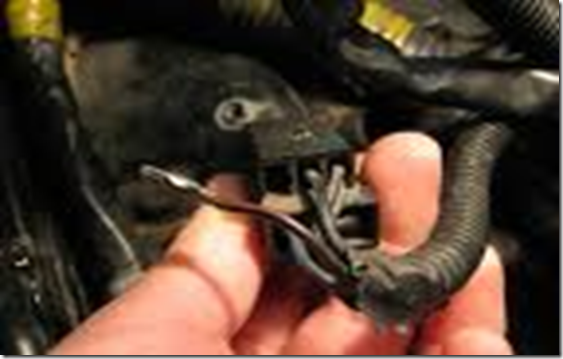

   = The wire that supplies power to fuel pump has been damaged.
   = Inspect the fuel pump operation using jump wire = Normal operation.

4) Repair Guide:

1. Repair the wire.
