2011  G 4.6 DOHC   Engine Control  P0018 Crankshaft Position-Camshaft Position Correlation (Bank 2 Sensor A)

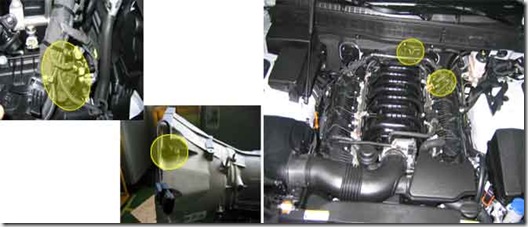

Component Location Study Guide and Auto Repair General Description Study A Crankshaft Position Sensor (CKPS) is a magnetic type sensor that generates voltage using a sensor and a target wheel mounted on the crankshaft. Study The PCM calculates engine RPM by using the sensor’s signal and controls the injection duration and the ignition timing. Study Camshaft position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element. It is Study related with Crankshaft Position Sensor (CKPS) and detects the piston position of the each cylinder which the CKPS can’t detect. This CMPS signal is sent to the PCM and it uses CMPS signals for determining the ignition timing with CKPS signals. CMPS makes Sequential Injection possible. Study and Auto Repair the DTC Description If the deviation between CKPS and CMPS(IN-CMPS Bank 2) is bigger than the threshold value, ECM sets DTC P0018  to Study. DTC Detecting Condition Item Detecting Condition Possible Cause Case1Study DTC Strategy • Camshaft install diagnosis • Poor connection • Contamination of Oil / Clog of Oil path • CKPS, CMPS • OCV • CVVT Enable Conditions Study • First firing detected after ECM installed or ‘Camshaft install fault exist • Adapted CMP - CMP < 2 Deg Threshold Value Study • | Adapted CMP – Set value | 7 Deg Case2 Study DTC Strategy • Camshaft and crankshaft alignment check Enable Conditions Study • Adapted CMP - CMP  2 Deg • Engine speed < 1500rpm • Engine load  50% • ECT  60C Threshold Value Study • | Adapted CMP – Set value – Adaped CMP during install diagnosis |  13 Deg Diagnostic Time Study • 6 camshaft rotations MIL On Condition • 2 driving cycle Study Guide and Auto Repair Signal Waveform & Data   more information on trouble shooting Study Guide and Auto Repair and Study Guide and Auto repair
